Budget Drawplates

The Shafa Store >> >> Budget Drawplates

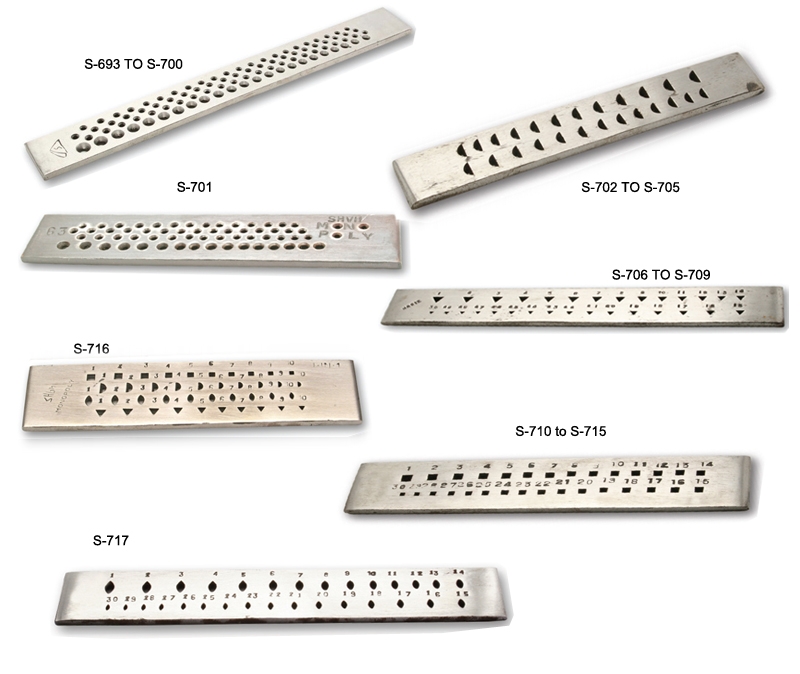

Model No. : S-693 TO S-717

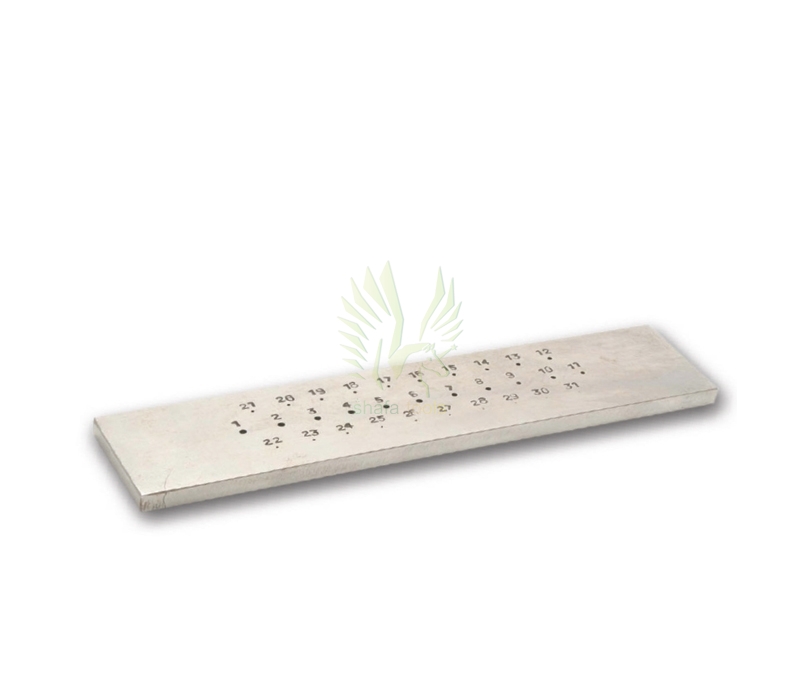

Durable, economical steel drawplates for reducing & shaping thickness of copper, brass gold, silver & soft steel wire. Plates are hand-tooled and all sizes correspondingly marked.

Combo Drawplate - Draw a variety of wire in different shapes & sizes, with this single, multi-purpose drawplate. Handy tool to meet all those special requirements. Includes half-round, triangular, square and oval shapes. Measures 6 inch.
Oval Drawplate - 30 oval-shaped holes, with sizes are marked on the plate.

Model No.	Weight	Description
S-695	100 gms	30 Holes (6 inch) - Round Drawplates
S-693	78 gms	20 Holes (4 inch) - Round Drawplates
S-694	68 gms	30 Holes (4 inch) - Round Drawplates
S-696	210 gms	50 Holes (8 inch) - Round Drawplates
S-697	92 gms	63 Holes (4½ inch) - Round Drawplates
S-698	120 gms	71 Holes (6½ inch) - Round Drawplates
S-699	260 gms	82 Holes (8½ inch) - Round Drawplates
S-700	328 gms	91 Holes (10½ inch) - Round Drawplates
S-701	86 gms	63 Holes (4½ inch) Oxidized Finish - Round Drawplates
S-702	166 gms	20 Holes (6 inch) - Half-Round Drawplates
S-703	154 gms	25 Holes (6 inch) - Half-Round Drawplates
S-704	134 gms	30 Holes (6 inch) - Half-Round Drawplates
S-705	196 gms	30 Holes (8 inch) - Half-Round Drawplates
S-706	130 gms	20 Holes (6 inch) - Triangular Drawplates
S-707	156 gms	25 Holes (6 inch) - Triangular Drawplates
S-708	120 gms	30 Holes (6 inch) - Triangular Drawplates
S-709	200 gms	30 Holes (8 inch) - Triangular Drawplates
S-710	100 gms	20 Holes (4½ inch) - Square Drawplates
S-711	118 gms	20 Holes (6 inch) - Square Drawplates
S-712	124 gms	30 Holes (6 inch) - Square Drawplates
S-713	220 gms	30 Holes (8 inch) - Square Drawplates
S-714	212 gms	40 Holes (8 inch) - Square Drawplates
S-715	336 gms	50 Holes (10 inch) - Square Drawplates
S-716	150 gms	Combo Drawplate
S-717	204 gms	Oval Drawplate
