Model No. : S-1826

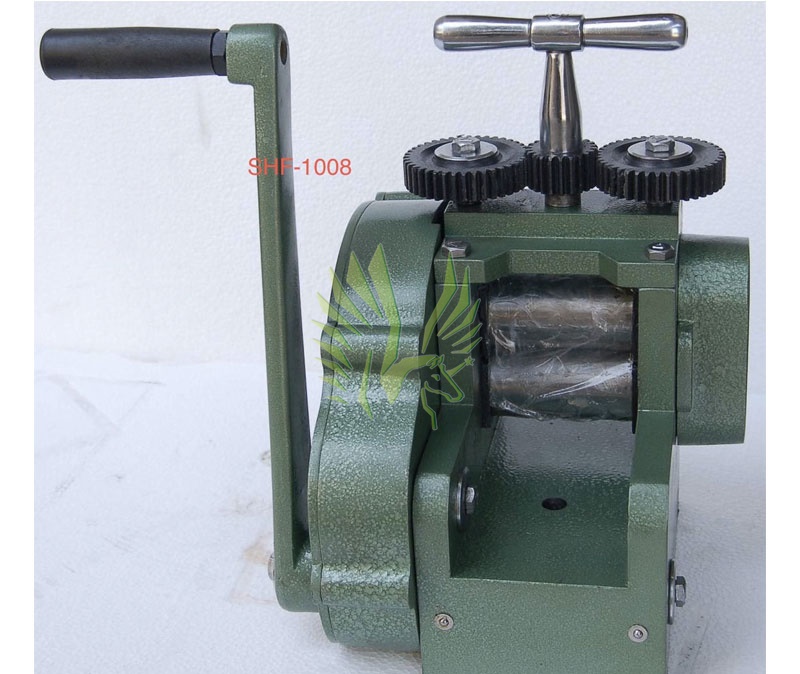

This compact, versatile Rolling Mill is equipped with two 43mm diameter flat, hardened steel rolls, each 76mm wide. Maximum sheet thickness -- 3.5mm. The mill also features 4:1 gear reduction ratio. Simple T-bar roller adjustment mechanism. Reduction gear shaft location hidden inside case. Gears have brass bushings ensuring a longer life, and are covered, in conformance with OSHA regulations. Two holes are provided in the base of the mill for bolting to your workbench. Dimensions: 8.5" x 8.5" x 12" high (without handle)

Model No.	Weight	Description
S-1826A	21000 gms	pair plain rollers
S-1826B	24500 gms	rollers (1 pair plain, 2 texture, 1 half-round & V-groove)
S-1826C	26000 gms	rollers (1 pair plain, 1 pair wire, 2 texture, 1 half-round & V-groove)
