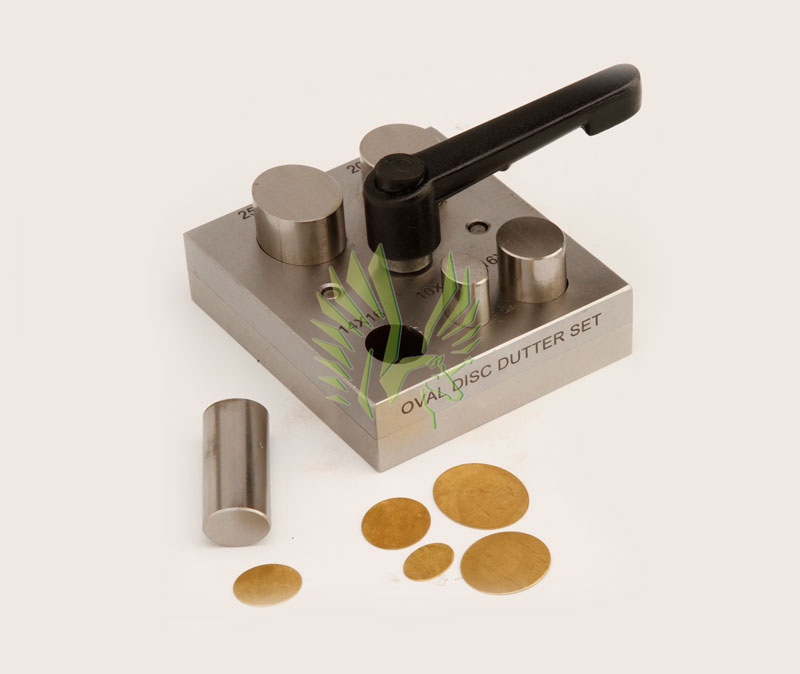

Oval Disc Cutter (Set of 5)
Model No. : S-1828
Premium quality oval disc cutting set. Hardened & tempered, shock- resistant, precision-ground steel punches of sizes: 18x16, 14x10, 16x14, 22x20 & 25x21mm. The top plate has punch sizes prominently marked on it. Turn the handle to open/close the spring-loaded die plate according to the thickness of the metal being punched. Designed for soft, non-ferrous metals up to 20 gauge when using a hammer; up to 16 gauge, when using a Bonny Doon hydraulic press. Use with our S-1606 urethane pad as a support under the disc cutter set to absorb the energy of the hammer blow and protect the work surface.
Model No. | Weight | Description |
S-1828A | 1450 gms | Without wooden box |
S-1828B | 1700 gms | With wooden box |
